01
Cutting length:200-5000mm

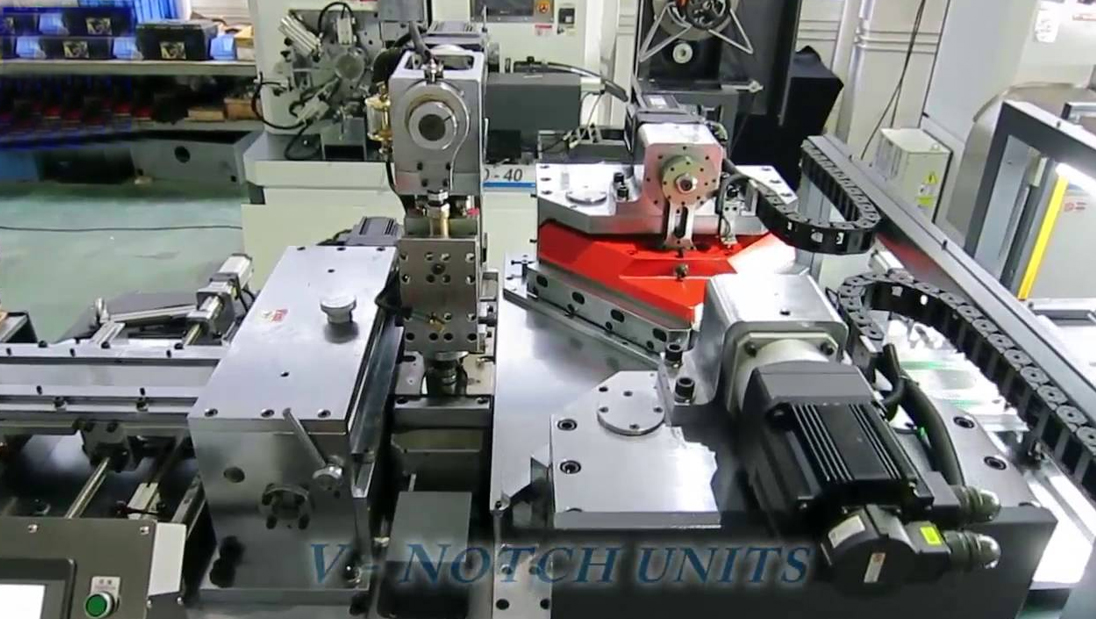

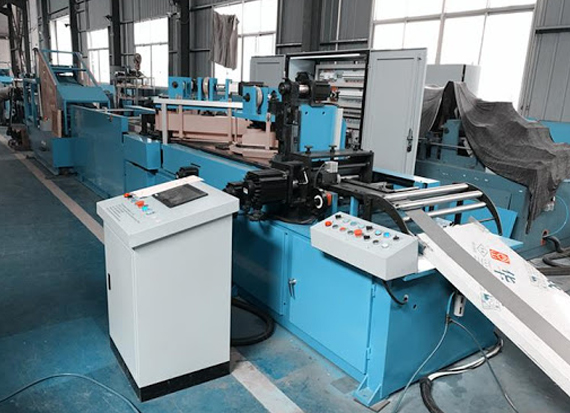

Cut to length line is controlled by advanced PLC, HMI operation and is mainly used for straight&mitred core cutting&punching,V-shape,feeding rack the Silicon steel laminations automatically.
It cuts the silicon steel coil to length as per drawings.
02
Cutting burr height:Max0.02mm
Burrs or burs (sometimes called rotary files)[1][2] are small cutting tools; not to be confused with small pieces of metal formed from cutting metal, used in die grinders, rotary tools, or dental drills. The name may be considered appropriate when their small-sized head (3 mm diameter shaft) is compared to a bur (fruit seed with hooks) or their teeth are compared to a metal burr.
03
Cut-to-length precision:+-0.025mm

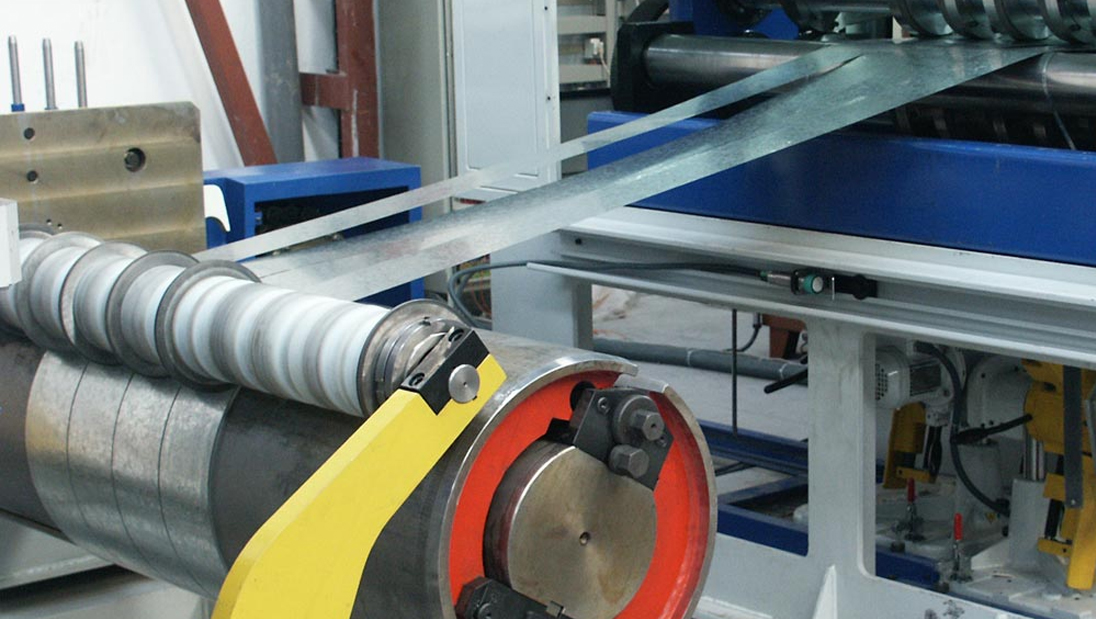

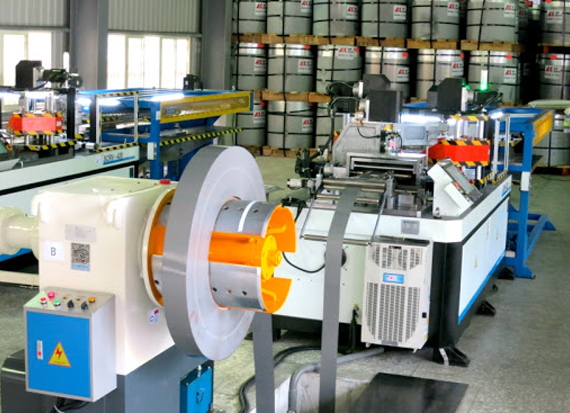

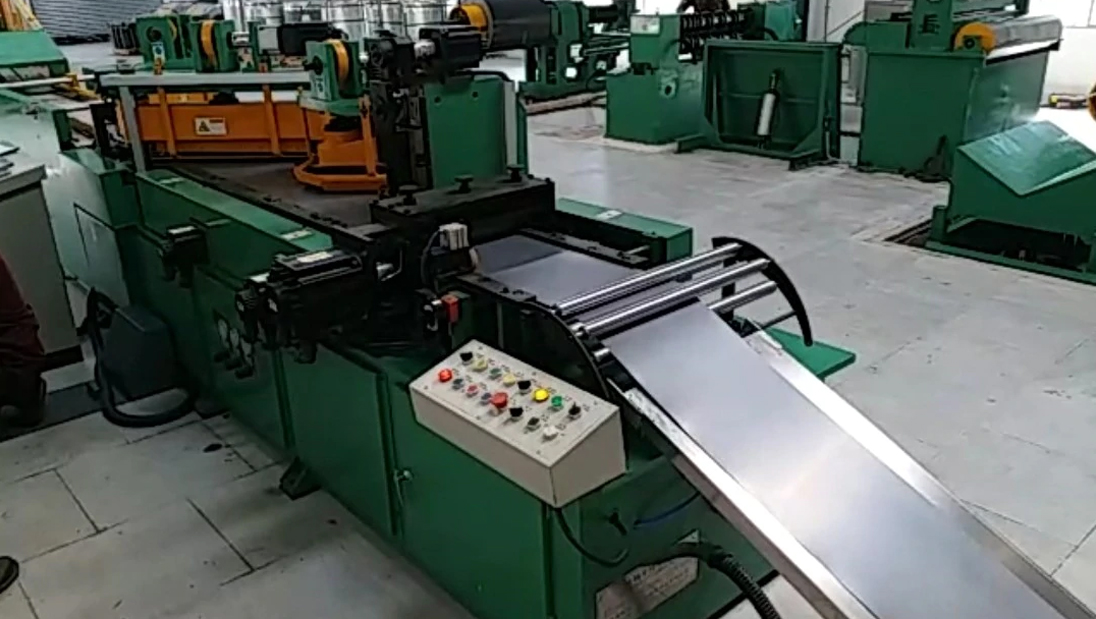

This high-speed cut-to-length line is able to uncoil & level a coil strip, and then shear the leveled flat strip to certain length of sheets at line speed of max 100m/min. It is referred as coil strip CTL machine in general place. This CTL machine is suitable for thin sheet or thin coil cut-to-length.
04
Punching burr height:Max0.03mm
A burr is a raised edge or small piece of material that remains attached to a workpiece after a modification process.It is usually an unwanted piece of material and is removed with a deburring tool in a process called 'deburring'.
05
Cutting width upto 500 mm
The stacking factor (also lamination factor or space factor[1]) is a measure used in electrical transformer design and some other electrical machines. It is the ratio of the effective cross-sectional area of the transformer core to the physical cross-sectional area of the transformer core. The two are different because of the way cores are constructed.
